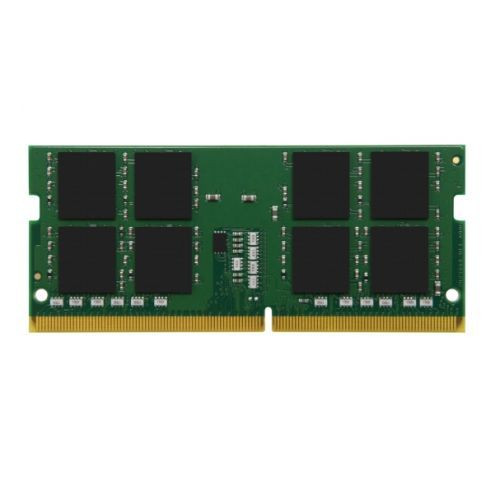

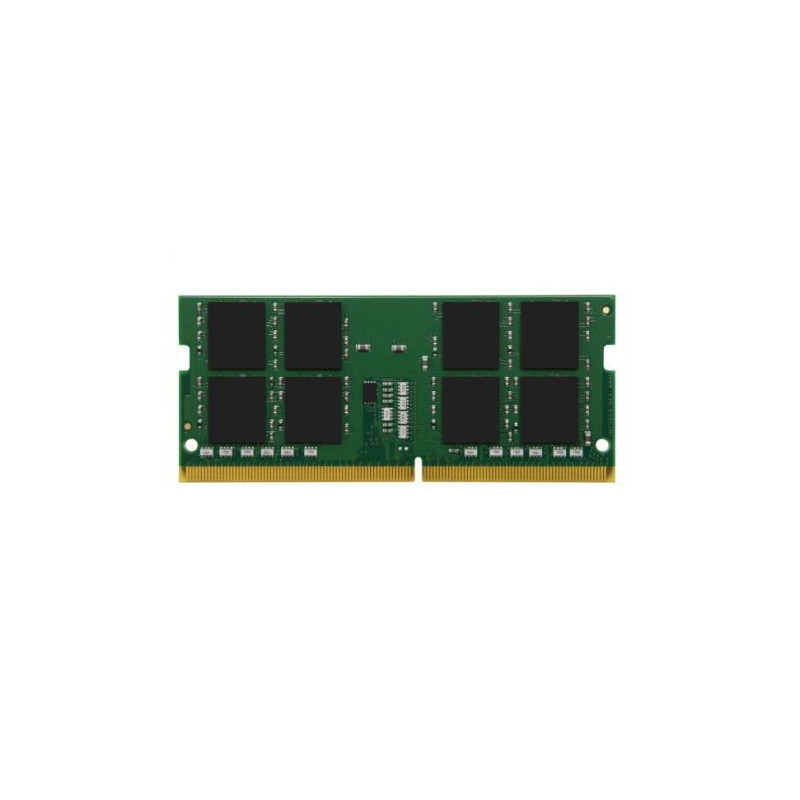

Kingston 16GB, DDR4, 2666MHz (PC4-21300), CL19 SODIMM Memory

ValueRAM's KVR26S19D8/16 is a 2G x 64-bit (16GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 2Rx8, non-ECC, memory module, based on sixteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. This 260-pin DIMM use gold contact fingers.




•

  Power Supply: VDD = 1.2V Typical
•

  VDDQ = 1.2V Typical
•

  VPP = 2.5V Typical
•

  VDDSPD = 2.2V to 3.6V
•

  Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
•

  Low-power auto self refresh (LPASR)
•

  Data bus inversion (DBI) for data bus
•

  On-die VREFDQ generation and calibration
•

  Dual-rank
•

  On-board I2 serial presence-detect (SPD) EEPROM
•

  16 internal banks; 4 groups of 4 banks each
•

  Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
•

  Selectable BC4 or BL8 on-the-fly (OTF)
•

  Fly-by topology
•

  Terminated control command and address bus
•

  PCB: Height 1.18” (30.00mm)
•

  RoHS Compliant and Halogen-Free
