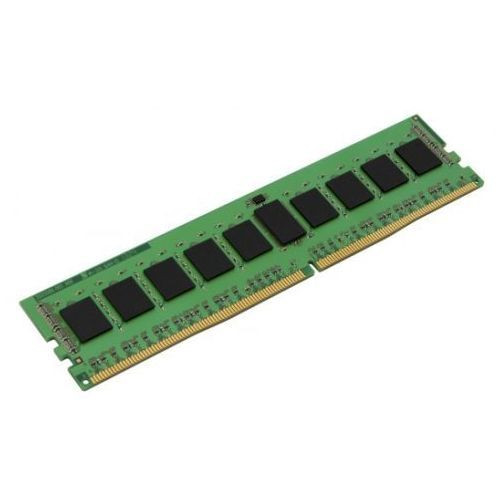

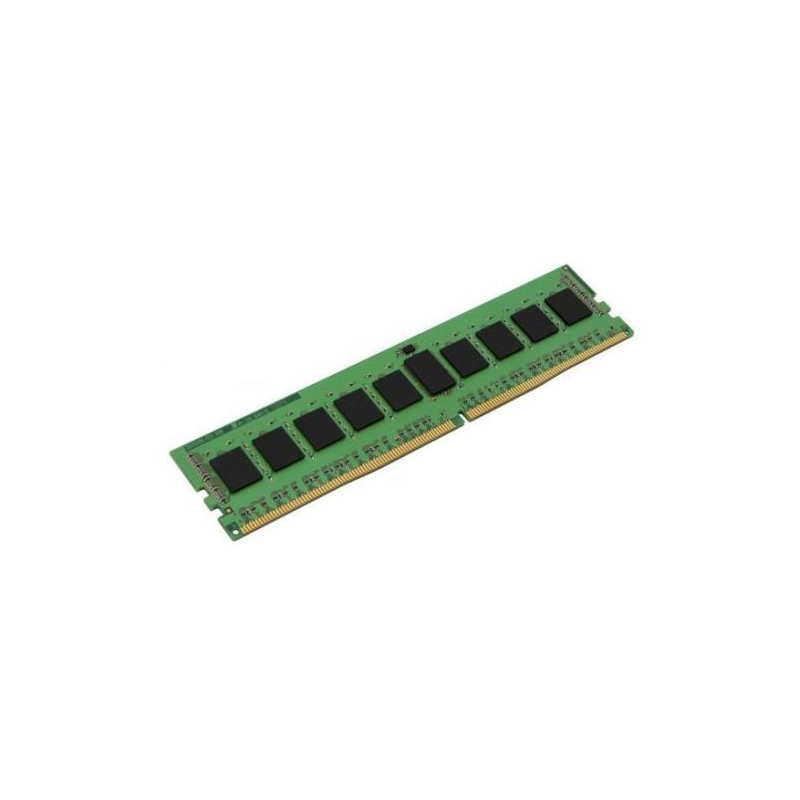

Kingston 16GB, DDR4, 2666MHz (PC4-21330), CL19, DIMM Memory

ValueRAM's KVR26N19D8/16 is a 2G x 64-bit (16GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.




Features

•

  Power Supply: VDD=1.2V Typical
•

  VDDQ = 1.2V Typical
•

  VPP - 2.5V Typical
•

  VDDSPD=2.2V to 3.6V
•

  Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
•

  Low-power auto self refresh (LPASR)
•

  Data bus inversion (DBI) for data bus
•

  On-die VREFDQ generation and calibration
•

  Dual-rank
•

  On-board I2 serial presence-detect (SPD) EEPROM
•

  16 internal banks; 4 groups of 4 banks each
•

  Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
•

  Selectable BC4 or BL8 on-the-fly (OTF)
•

  Fly-by topology
•

  Terminated control command and address bus
•

  PCB: Height 1.23” (31.25mm)
•

  RoHS Compliant and Halogen-Free
