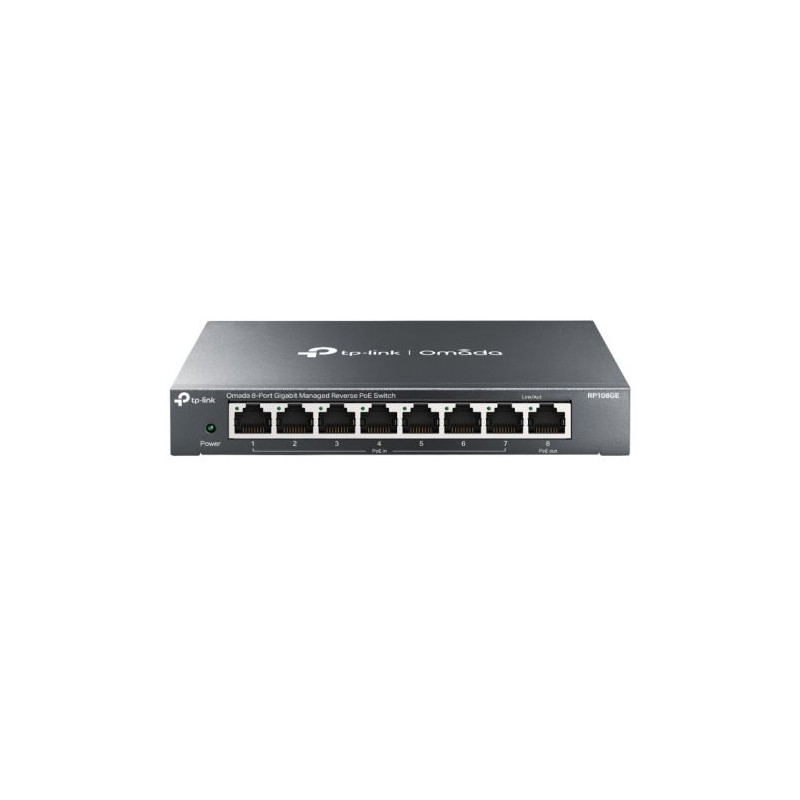

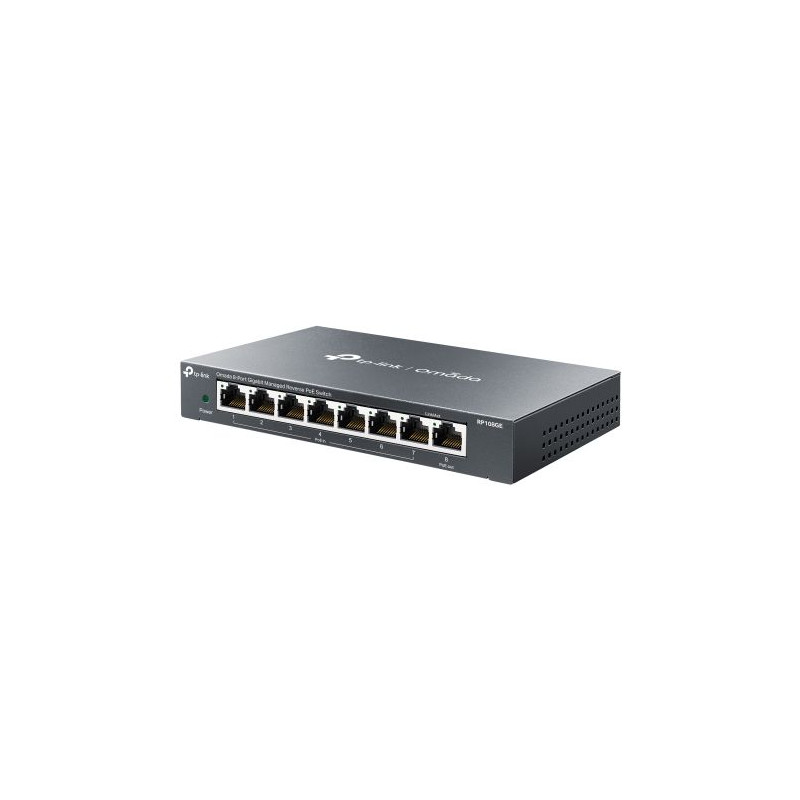

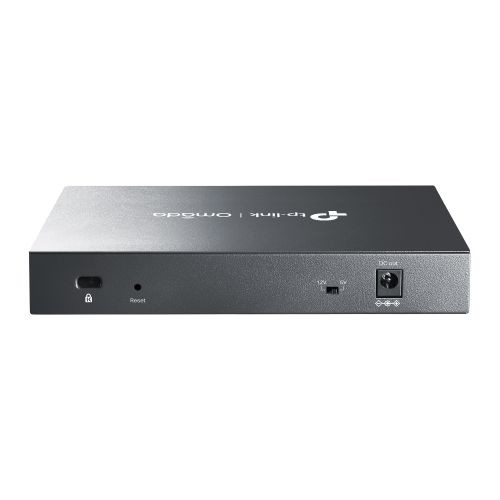

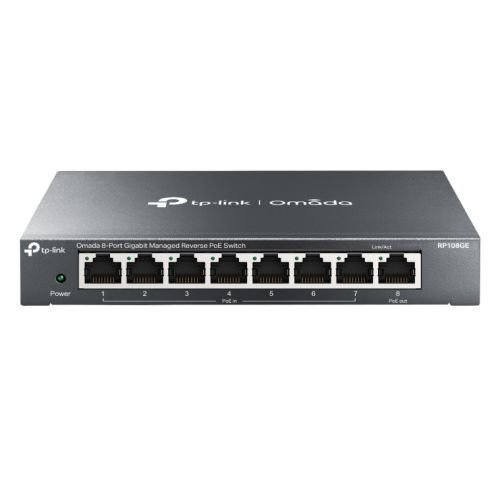

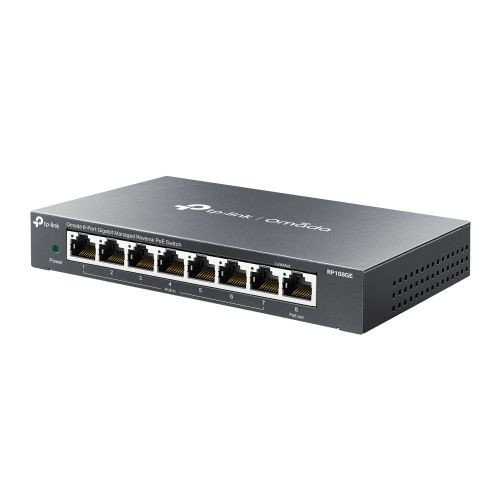

TP-LINK (TL-RP108GE) 8-Port Gigabit Managed Reverse PoE Switch, 7 PoE Input & 1 PoE Output, DC Output, Metal Casing

Condition: New product

16 Items

£ 35.22

Data sheet

Note: Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Manufacturer Number: RP108GE
Manufacturer: TP-LINK
Warehouse: UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Rackmountable
No
Managed
Yes
Number of Ports
8
Max RJ45 Transfer Rate
10/100/1000 Mbps
Interface(s)
7 Passive PoE-in RJ45 Ports:
10/100/1000Mbps Auto-Negotiation
Voltage: 24/48 V (mixture is not supported)
Power pin of Ethernet cable: 4/5+ 7/8-

1 Passive PoE-out RJ45 Port:
10/100/1000Mbps Auto-Negotiation
Voltage: depending on the input voltage of PoE-in ports
Power pin of Ethernet cable: 4/5+ 7/8-

1 DC Output Port:
Voltage: 5/12 V
PoE Ports (RJ45)
See above
Standards and Protocols
CSMA/CD

IEEE802.3ab, IEEE802.3i, IEEE802.3p
IEEE802.3q, IEEE802.3x, IEEE802.3u
Switching Capacity
16 Gbps
LED
Power, Link/Act LED
Dimensions
158 x 99.1 x 25 mm
Transfer Method
Store-And-Forward
Mac Address Table
4 K
Packet Forwarding Rate
11.9 Mbps
Jumbo Frame
16 KB
Advanced Functions
See Overview
Quality of Service
Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
Layer Features
L2:
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management
Intelligent management via a web user interface and downloadable utility
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package Contents
TL-RP108GE
Power Cord
Installation Guide
Rubber Feet
Package Type
Retail
Package Weight
0.4300 kg
Warranty
2 Years
Full Box Quantity
20
Manufacturer Link
Click here for more details from the manufacturer
