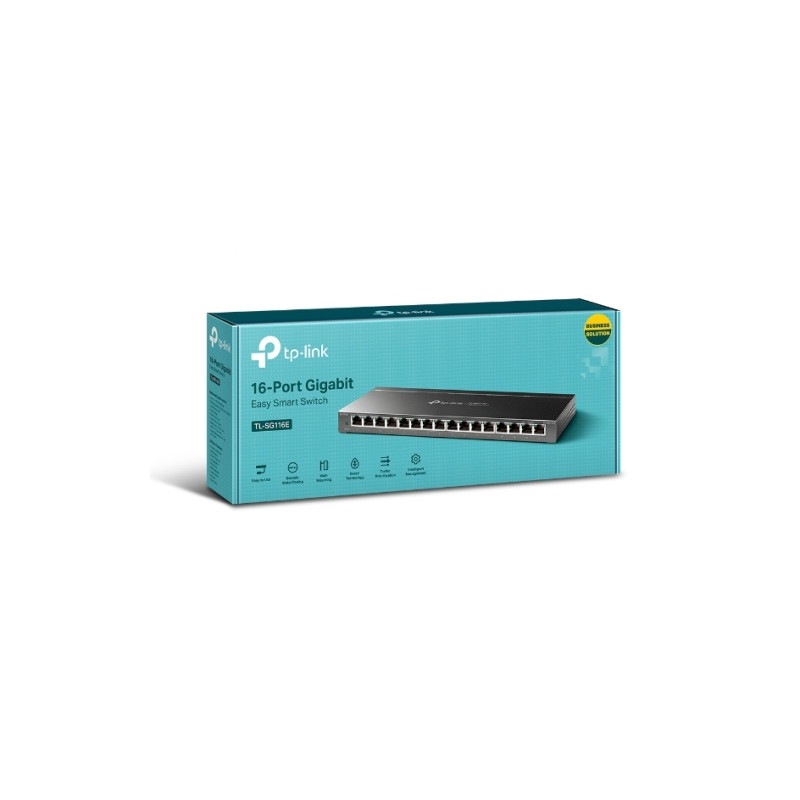

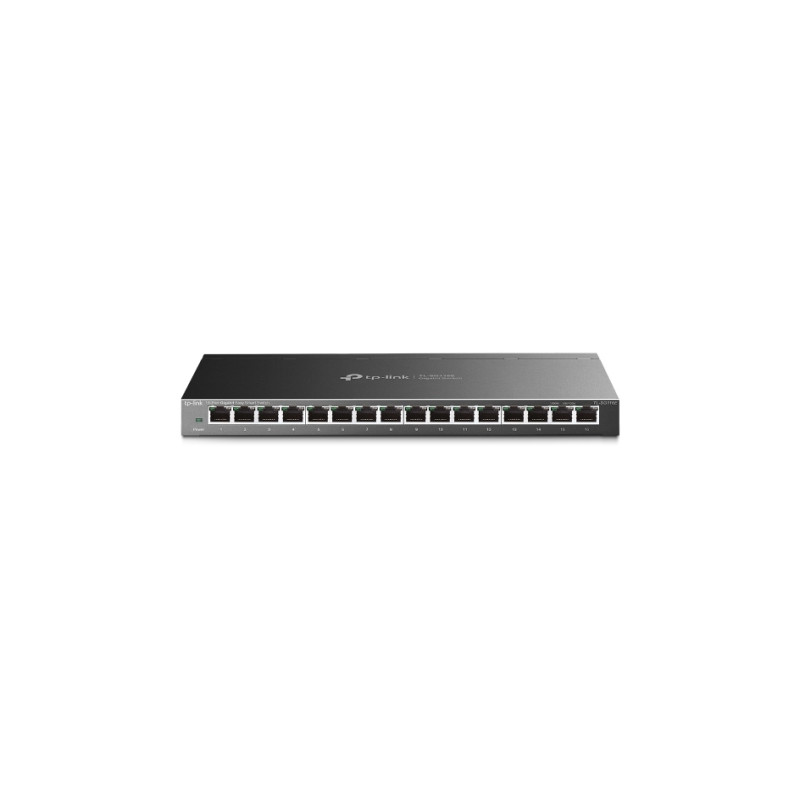

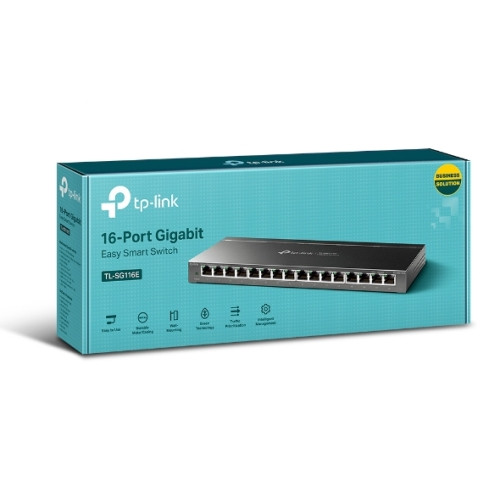

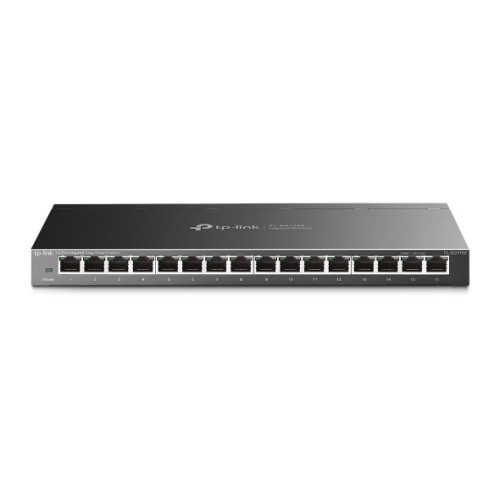

TP-LINK (TL-SG116E) 16-Port Gigabit Unmanaged Pro Switch, Steel case

Condition: New product

10 Item Items Warning: Last items in stock!

£ 92.26

Quantity

Data sheet

Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Manufacturer Number:	TL-SG116E
Manufacturer:	TP-LINK
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Rackmountable

Managed

Number of Ports

Max RJ45 Transfer Rate

10/100/1000 Mbps

Interface(s)

16 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

PoE Ports (RJ45)

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Switching Capacity

32Gbps

Power Supply

External Power Adapter
(Output: 12VDC/1A)

Dimensions

286 x 111.7 x 25.4 mm

Transfer Method

Store-And-Forward

Mac Address Table

Packet Forwarding Rate

23.81Mpps

Jumbo Frame

9KB

Advanced Functions

See Overview

Quality of Service

Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control

Layer Features

IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention

VLAN

Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

Environment

Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Package Contents

TL-SG116E
Power Cord
Installation Guide
Rubber Feet

Package Type

Retail

Package Weight

1.3400 kg

Warranty

Limited Lifetime

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
