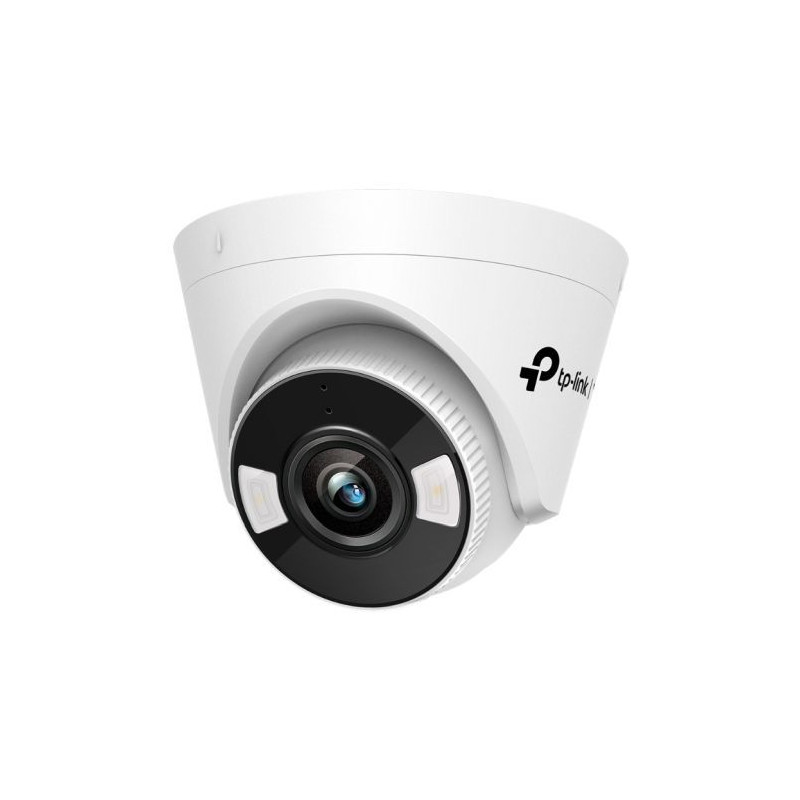

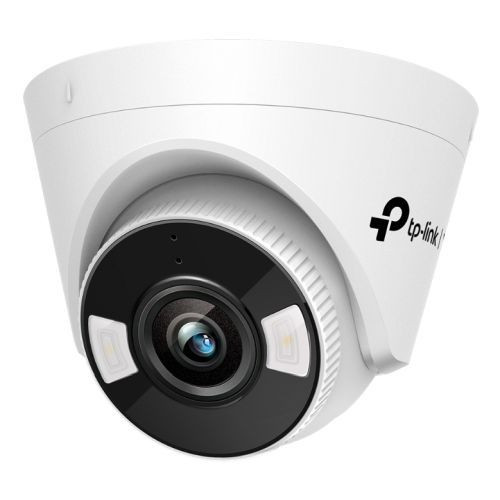

TP-LINK (VIGI C450 2.8MM) 5MP Full Colour Turret Network Camera w/ 2.8mm Lens, PoE, Smart Detection, People & Vehicle Analytics,
Condition: New product
16 Items
Data sheet
Note: | Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you! |
Manufacturer: | TP-LINK |
Warehouse: | UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this. |
Manufacturer Number: | VIGI C450(2.8MM) |
More info
Suitable for Outdoor
No
Wired/Wireless
Wired
Interface(s)
1 x RJ45 10/100M Self-Adaptive Ethernet Port, PoE
DC Power Port
Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
DC Power Port
Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
Image Sensor
1/2.7" Progressive Scan CMOS
Resolution
Main Stream:
2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720
Sub-Stream:
704x576, 640x480, 352x288, 320x240
2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720
Sub-Stream:
704x576, 640x480, 352x288, 320x240
Frame Rate
Main Stream:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Sub-Stream:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Sub-Stream:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Sub-Stream: H.265/H.264
Lens
Type: Fixed Focal Lens
Focal Length: 2.8 mm
Aperture: F1.6
Lens Mount: M12*P 0.5
DORI Distance:
Detect: 64 m (209 ft)
Observe: 27 m (87 ft)
Recognize: 13 m (42 ft)
Identify: 6 m (21 ft)
Focal Length: 2.8 mm
Aperture: F1.6
Lens Mount: M12*P 0.5
DORI Distance:
Detect: 64 m (209 ft)
Observe: 27 m (87 ft)
Recognize: 13 m (42 ft)
Identify: 6 m (21 ft)
Viewing Angle
Horizontal FOV: 109°
Vertical FOV: 57°
Diagonal FOV: 128°
Vertical FOV: 57°
Diagonal FOV: 128°
Pan/Tilt Range
Pan: 0° to 360°
Tilt: 0° to 85°
Tilt: 0° to 85°
Day/Night Mechanism
IR Cut Filter
Day/Night Switch: Day/Night/Auto/Schedule-Switch
Day/Night Switch: Day/Night/Auto/Schedule-Switch
Minimum Illumination
0.005 Lux; 0 Lux with IR/white light
Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Audio Features
Audio Communication: Two-Way Audio
Audio Input: Yes
Audio Output: Yes
Audio Compression: Yes
Audio Sampling Rate: 8KHz
Environment Noise Filtering: Yes
Audio Bit Rate: 64 Kbps(G.711 alaw)
Audio Input: Yes
Audio Output: Yes
Audio Compression: Yes
Audio Sampling Rate: 8KHz
Environment Noise Filtering: Yes
Audio Bit Rate: 64 Kbps(G.711 alaw)
Alarm and Event Management
Smart Event:

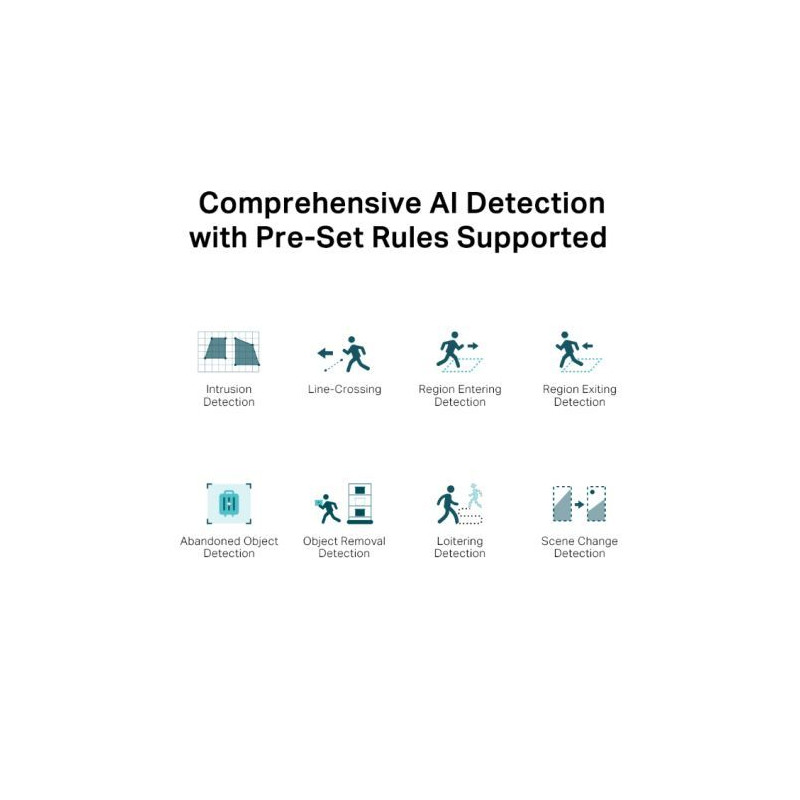

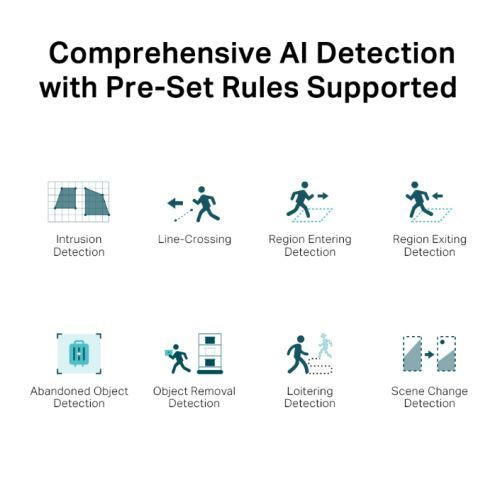

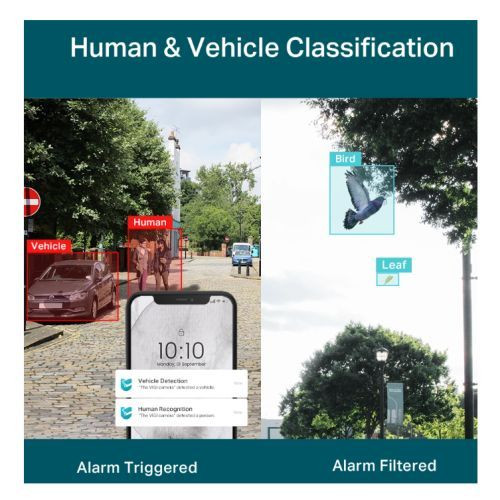

Human and Vehicle Classification, Area Intrusion, Line-Crossing, People, Vehicle, Region Entering, Region Exiting, Object Abandoned, Object Removal, Loitering
Basic Event:
Motion, Video Tampering, Exception (Illegal Login), Scene Change
Alarm Linkage:
Memory Card Video Recording, Message Push, White Light Flashing
Output Notification:
Message Push
Human and Vehicle Classification, Area Intrusion, Line-Crossing, People, Vehicle, Region Entering, Region Exiting, Object Abandoned, Object Removal, Loitering
Basic Event:
Motion, Video Tampering, Exception (Illegal Login), Scene Change
Alarm Linkage:
Memory Card Video Recording, Message Push, White Light Flashing
Output Notification:
Message Push
Network
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API: Open Network Video Interface (Profile S)
Simultaneous Live View: 3 Main Streams and 3 Sub-Streams
Client: VIGI App, VIGI Security Manager, Web UI
Cloud: Yes
ONVIF: Yes
API: Open Network Video Interface (Profile S)
Simultaneous Live View: 3 Main Streams and 3 Sub-Streams
Client: VIGI App, VIGI Security Manager, Web UI
Cloud: Yes
ONVIF: Yes
Security
Network Security:
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Management
VIGI App
Power Supply
12V DC +/- 5%, Max. 9 W, 5.5mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max. 10.5 W
PoE: 802.3af/at, class 0, Max. 10.5 W
Weight/Dimensions
0.24 kg
123 x 84 mm
123 x 84 mm
Environment
Operating Temperature: -30–60 °C
Storage Temperature: -40–60 °C
Storage Humidity: 95% or Less (Non-Condensing)
Operating Humidity: 95% or Less (Non-Condensing)
Storage Temperature: -40–60 °C
Storage Humidity: 95% or Less (Non-Condensing)
Operating Humidity: 95% or Less (Non-Condensing)
Package Contents
VIGI Network Camera
Quick Start Guide
Mounting Accessories
Quick Start Guide
Mounting Accessories
Package Weight
0.3900 kg
Warranty
3 Years
Full Box Quantity
18
