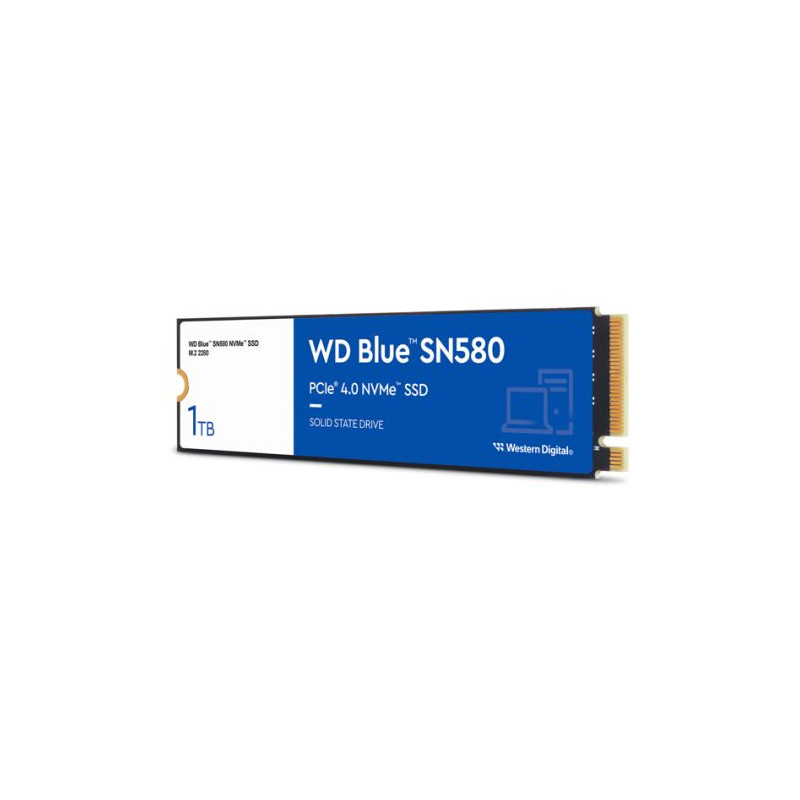

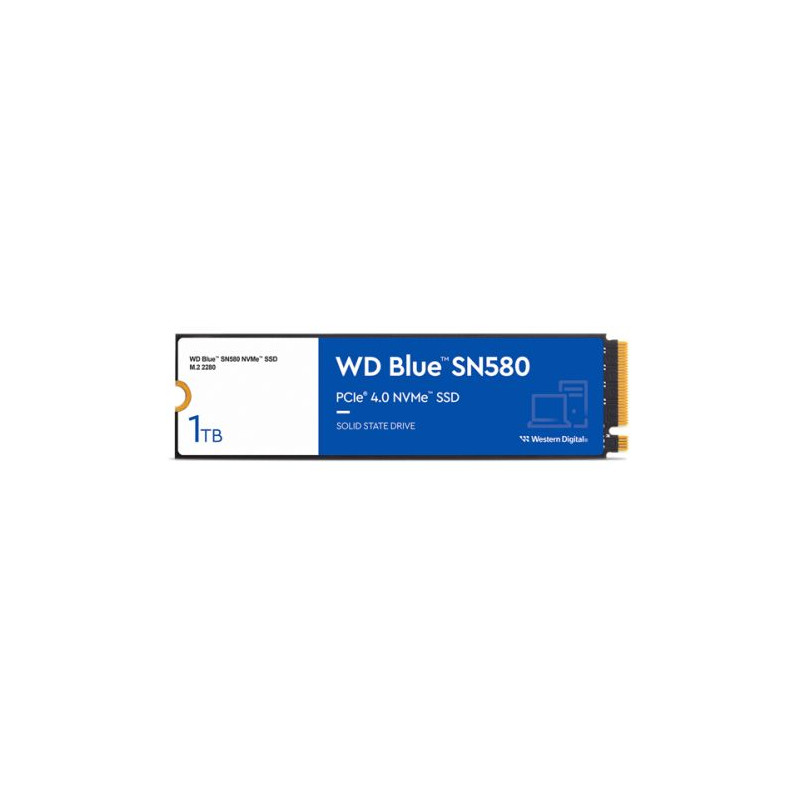

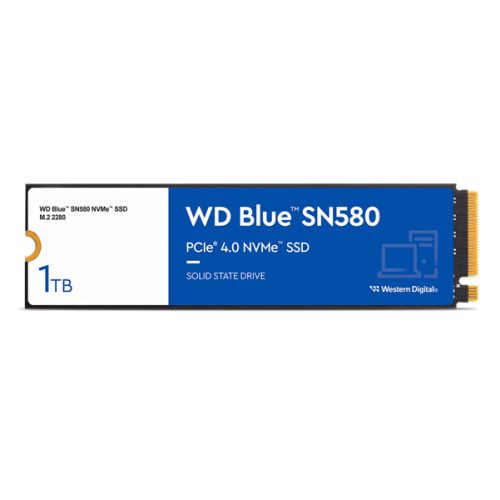

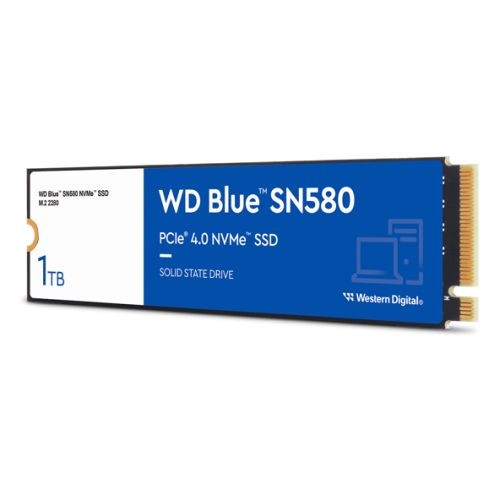

WD 1TB Blue SN580 M.2 NVMe Gen4 SSD, M.2 2280, PCIe4, TLC NAND, R/W 4150/4150 MB/s, 600K/750K IOPS
Condition: New product
38 Items
Data sheet
Note: | Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you! |
Warehouse: | UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this. |
Manufacturer: | WD |
Manufacturer Number: | WDS100T3B0E |
More info
Series
WD Blue SN580
Capacity
1 TB
Form Factor
M.2 2280
Interface
PCIe 4.0 x4
Read
Up to 4150 MB/s
Write
Up to 4150 MB/s
Max Random 4K R/W
600K / 750K IOPS
Power Consumption
Average Active Power: 65mW
Sleep (PS5): 3.3mW
Sleep (PS5): 3.3mW
Weight/Dimensions
5.5g
80 x 22 x 2.38 mm
80 x 22 x 2.38 mm
Operating Temperatures
0°C to 85°C
Storage Temperatures
-40°C to 85°C
Shock Resistance
1,500 G @ 0.5 msec half sine
Vibration Operating
5.0 gRMS, 10–2000 Hz, 3 axes
Vibration Non-operating
4.9 gRMS, 7–800 Hz, 3 axes
MTBF
1.5M hours
Total Bytes Written (TBW)
600 TBW
Additional Features
See Overview
Package Type
Retail
Package Weight
0.0500 kg
Warranty
5 Years or if the drive exceeds Total Bytes Written (see above)
Full Box Quantity
10
Manufacturer Link
